Fiber laser cutting machine is a new type of metal laser cutting machine. The high-energy laser beam will focus on the surface of the workpiece, and the irradiated area will immediately melt and vaporize. The slag will be blown away by auxiliary gas. Fiber laser cutting machine saves space and gas consumption, and has a higher photoelectric conversion rate.
Fiber laser cutting machines can help us cut many different metals, such as stainless steel, carbon steel, copper, aluminum, brass, gold, silver, iron, alloys, etc.
The CNC fiber laser cutting machine can be applied to various industries such as aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, precision parts, ships, elevators, household appliances, craft gifts, decoration, advertising, metal processing, kitchenware processing, etc.
Compared with plasma cutting, fiber laser cutting machines have higher cutting accuracy, smoother cutting edges, fewer burrs, and smaller heat affected zones to avoid workpiece deformation. It supports the processing of stainless steel, aluminum, brass, and copper. Consumables with less wear and tear bring lower long-term production costs.
Different thickness needs different laser power :
Main parts of fiber laser cutting machine :
Aviation Cast Aluminum Beam
• Machine adopts aviation cast aluminum beam, which is manufactured according to the aerospace standards and extruded with 4300 tons pressure.
• The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance.
• Using ultra-high pressure tensile technology and light weight design, the beam weight is reduced by 30% compared with cast aluminum beam and the strength and rigidity are increased by more than 20%.
Super heavy Steel Welding Machine Bed

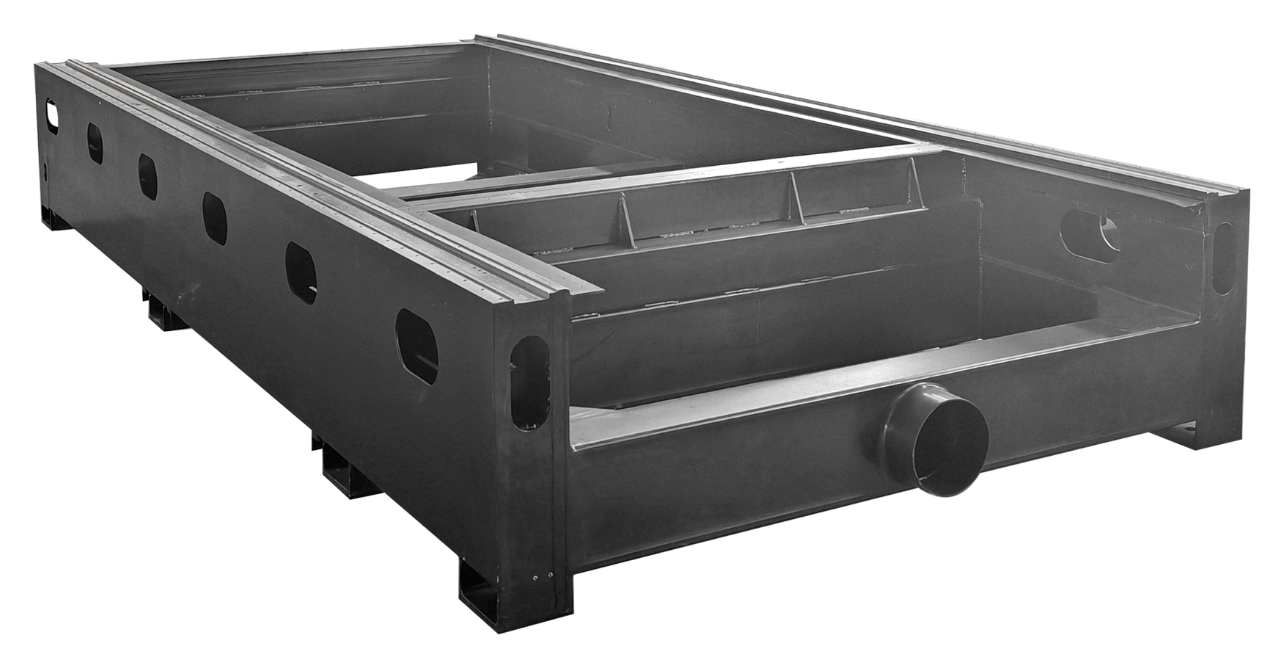

• The bed is welded with big thickness square tubes, which has stiffeners inside to increase the structure strength and tensile strength.
• With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy.
Auto Focus Cutting Head
• Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time, improve the perforation quality and cutting speed. It’s simple, convenient and fast.
• Long life span
Full-circle water cooling around the focusing component, which can realize no heat, no fog with high power cutting, small volume cutting and long term cutting, the lifetime of the cutting head is improved greatly.
Intelligent operation software
• Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and high resolution.
• The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation.
• Cypcut is one professional software for fiber laser cutting, easy operation and its is suitable for many different processing occasions.
Independent Control Cabinet
• Dust-proof

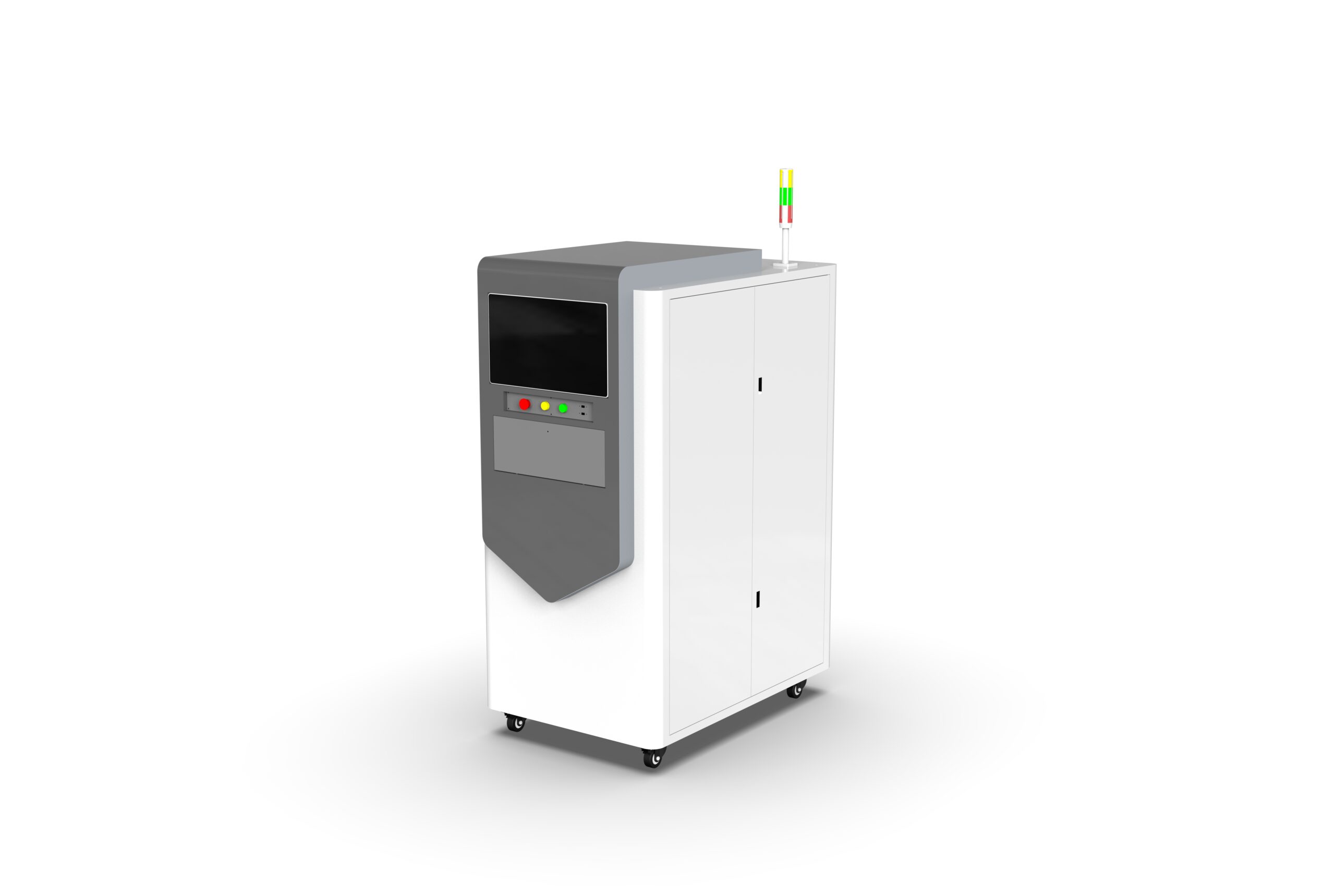

We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components.
• Automatic Thermostat
The control cabinet is equipped with air conditioner which can keep the constant temperature automatically. It can prevent the high temperature damage for the components in summer.
Fast Transmission and Super Precision
• Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise.
• Adopts Taiwan YYC / Germany HERION gears and Japan Shimpo / France MOTOVARIO / Germany Lead-motion reducers, which can make the machine position accuracy reach to 0.02mm
Parameters
| Model | 3015AC | 4015AC | 6015AC | 4020AC | 6020AC | 6025AC |
| Working Area(L*W) | 3000×1500mm | 4000×1500mm | 6000×1500mm | 4000×2000mm | 6000×2000mm | 6000×2500mm |
| Effective Round Tube Cutting Diameter | φ10-φ220mm | |||||
| Effective Square Tube Cutting Diameter | □10-□220mm | |||||
| Tube Length | 3000mm/6000mm/9000mm/12000mm ( Customized ) | |||||
| Laser Power | 1000W-20000W | |||||
| Repeat positioning accuracy | ±0.02mm | |||||
| Maximum speed | 120m/min | |||||
| Acceleration | 0.8G/ 1.0G / 1.5G / 2.0G | |||||
| Power consumption | <10KW | |||||
| Chuck | BEUT Pneumatic chuck | |||||
| Tube cutting transmit system | Gear transmit | |||||
| Sheet cutting transmit system | Dual Rack & Pinion type | |||||
| Cutting materials shape | Square pipe, round pipe, L – shaped pipe, channel steel pipe and other shaped pipe | |||||
Advantages of tube board two in one fiber laser cutting machine
Save workshop space
One device can complete the cutting of sheet metal and metal pipes. No need to purchase separate sheet metal laser cutting machines and independent pipe laser cutting machines, greatly saving factory space.
Reduce equipment investment costs
Compared with purchasing two independent equipment for sheet metal and pipe processing separately, the two in one integrated model can reduce the overall procurement budget. Suitable for small to medium-sized metal processing plants with mixed processing requirements.
Flexible multi form processing capability
It can process various metal sheets, as well as round tubes, square tubes, rectangular tubes, elliptical tubes, and shaped profiles. One device can handle a variety of customer orders, whether they are flat parts or pipe structural parts.
Unified after-sales and maintenance services
Only one set of laser source, cooling system, and electrical cabinet are needed. Compared to running two independent devices, daily maintenance is simpler, there are fewer types of spare parts, and after-sales maintenance is more convenient.
