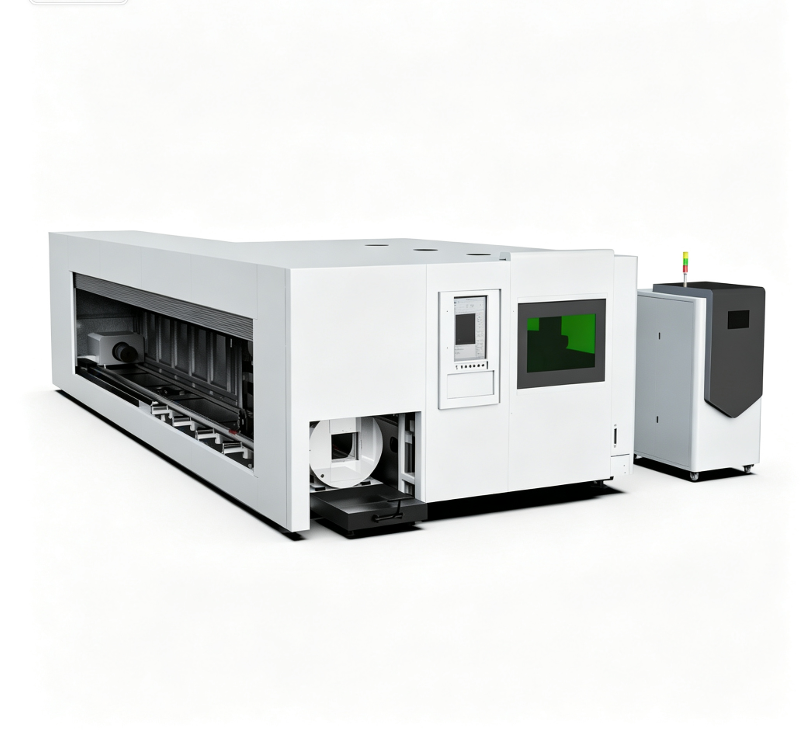

This fiber laser cutter includes protective cover, exchange platform, sheet & pipe laser cutting. Multi function with simple operation, guarantee the safety and great working efficiency.
Different cutting thickness need different laser power, please tell us your materials, size and thickness, then we will recommend you suitable model and power.
Features
1. One machine with dual functions ( plate cutting + tube cutting ). This machine = 1 sheet metal laser cutting machine + 1 tube metal laser cutting machine. It will save your purchasing cost and transportation cost.
1. Automatic Exchange Platform
Two platform can exchange automatically at same time within 20S, which improve working efficiency greatly.Stable and reliable transmission mode.
2. Protective Cover
Adopts full enclosed protective cover, which can prevent laser from hurting people. The built-in smoke purification system will avoid avoid environmental pollution and protect the health of operators.
3. Automatic Focus Cutting Head :
Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. It can shorten the perforation time, improve the perforation quality and cutting speed.
4. Intelligent CNC System :
Easy to operate even by green hands. It support multiple graphic files include DXF, PLT, DWG, AI, G-code, IGS (tube cutting). It is compatible with other nesting software.
Parameters
| Model | ZL3015BDC | ZL4015BDC | ZL6015BDC | Zl4020BDC | ZL6020BDC | ZL6025ABDC |
| Working Area(L*W) | 3000×1500mm | 4000×1500mm | 6000×1500mm | 4000×2000mm | 6000×2000mm | 6000×2500mm |
| Effective Round Tube Cutting Diameter | φ20-φ210mm | |||||
| Effective Square Tube Cutting Diameter | □20-□150mm | |||||
| Tube Length | 6000mm | |||||
| Laser Power | 1000W-20000W | |||||
| Repeat positioning accuracy | ±0.02mm | |||||
| Maximum speed | 120m/min | |||||
| Acceleration | 0.8G/ 1.0G / 1.5G / 2.0G | |||||
| Power consumption | <10KW | |||||
