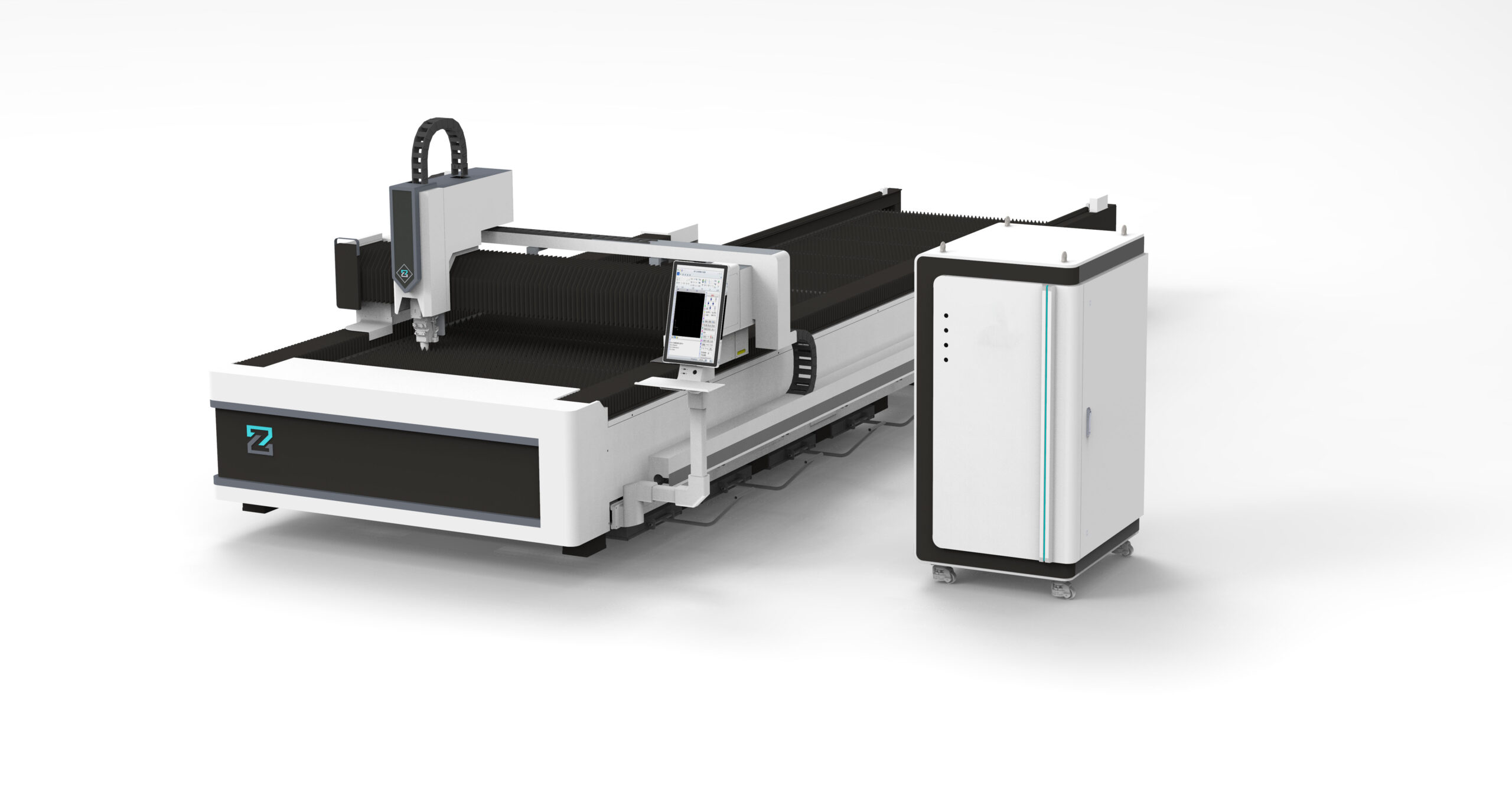

Fiber laser cutter is a new type of metal laser cutting machine. The laser beam with high energy will focus on surface of workpiece, and the irradiated area will be melted and vaporized instantly. fiber laser cutting machine saves space and gas consumption, and its photoelectric conversion rate is higher.
Fiber laser cutter can help us cut many different metals, such as stainless steel, carbon steel, copper, aluminum, brass, gold, silver, iron, titanium, alloys, etc.
CNC fiber laser cutting machine can be applied to various industries, such as aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, precision accessories, ships, elevators, household appliances, craft gifts, decoration, advertising, metal external processing, kitchenware processing, etc.
Different thickness needs different laser power :
Main parts of fiber laser cutting machine :
Aviation Cast Aluminum Beam
• Machine adopts aviation cast aluminum beam, which is manufactured according to the aerospace standards and extruded with 4300 tons pressure.
• The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance.
• Using ultra-high pressure tensile technology and light weight design, the beam weight is reduced by 30% compared with cast aluminum beam and the strength and rigidity are increased by more than 20%.
Super heavy Steel Welding Machine Bed
• The bed is welded with big thickness square tubes, which has stiffeners inside to increase the structure strength and tensile strength.
• With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy.
The bed structure design has a wider guide rail surface, which is conducive to long-term use, stable cutting quality, and high precision
Wide span of guide rail surface: forming a more stable support base, strong resistance to overturning torque, the machine head can be placed at any position on the workbench, and the slider is subjected to more uniform force, making it less prone to warping.
Wide span bed body, with better overall rigidity and vibration suppression; Small circles and sharp corners have better cutting smoothness and are less prone to vibration patterns
Span width: The lateral torque decreases, the slider mainly bears vertical pressure, the ball wear is small, the service life of the guide rail slider is significantly increased, and the long-term accuracy is better maintained
Matching 30 guide rails can form a more stable support base, making the crossbeam and cutting head more resistant to overturning, reducing vibration, ensuring more stable cutting quality, prolonging the service life of guide rails, and reducing after-sales costs for long-term use

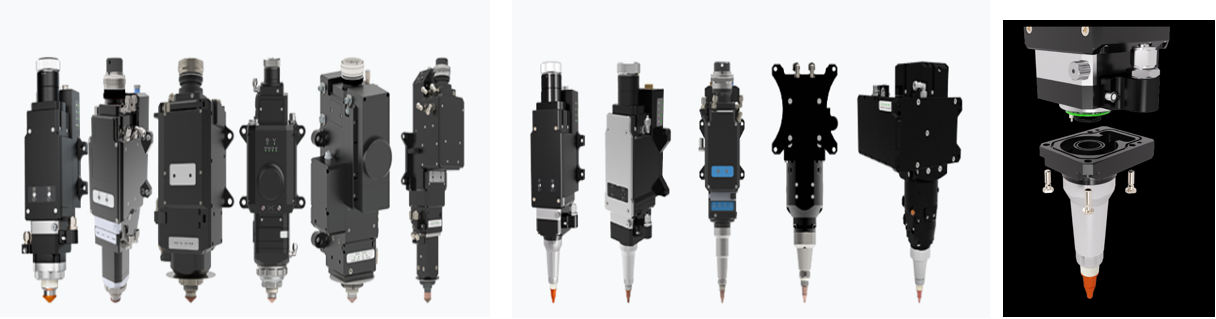

Auto Focus Cutting Head
• Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time, improve the perforation quality and cutting speed. It’s simple, convenient and fast.
• Long life span
Full-circle water cooling around the focusing component, which can realize no heat, no fog with high power cutting, small volume cutting and long term cutting, the lifetime of the cutting head is improved greatly.
We have developed multiple product combinations for high and low power cutting applications ranging from 3 to 120KW, including 3 series, 4 series, 6 series, 8 series, 9 series, and A series. These products feature dual spot, focus closed-loop control, automatic centering, intelligent perforation, automatic back cutting, air pressure monitoring, lens temperature monitoring, astigmatism monitoring, collision prevention, explosion prevention, and other intelligent technologies, making cutting more efficient, stable, safe, and intelligent
Intelligent operation software
• Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and high resolution.
• The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation.
• Cypcut is one professional software for fiber laser cutting, easy operation and its is suitable for many different processing occasions.
Independent Control Cabinet
• Dust-proof
We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components.
• Automatic Thermostat
The control cabinet is equipped with air conditioner which can keep the constant temperature automatically. It can prevent the high temperature damage for the components in summer.
The strong and weak electricity of the independent cabinet are distinguished by terminal blocks of different sizes.
Connect the strong current to the larger terminal block and the weak current to the smaller terminal block.
Dust proof electrical cabinet
Place all electrical components in independent cabinets.
Its dust-proof characteristics ensure the service life of components
Fast Transmission and Super Precision
• Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise.
• Adopts Taiwan YYC / Germany HERION gears and Japan Shimpo / France MOTOVARIO / Germany Lead-motion reducers, which can make the machine position accuracy reach to 0.02mm
Parameters
| Machine Model | 3015A | 4015A | 6015A | 4020A | 6020A | 6025A |
| Cutting Area(length x width) | 3000mm×1500mm | 4000×1500mm | 6000×1500mm | 4000×2000mm | 6000×2000mm | 6000×2500mm |
| Fiber Laser Power | 1000W / 1500W / 2000W / 3000W / 4000W / 6000W / 8000W / 12000W / 20000W | |||||
| Fiber Laser Source Brand | MAX / RAYCUS | |||||
| Laser Wavelength | 1,070-1,080nm | |||||
| Interface | USB,RJ45 | |||||
| Cutting Speed | 120m/min | |||||
| Position Accuracy | ±0.02mm | |||||
| Repeatability Accuracy | ±0.02mm | |||||
| Max Acceleration | 1.0G/ 1.5G/ 2.0G | |||||
| Compatible Software | CorelDraw/AutoCAD/Photoshop/AI | |||||
| Brand of Motor and Drivers | Japan Fuji; Japan Yaskawa ; Taiwan Delta；Inovance | |||||
| Support Graphic Format: | *.LXD / *.DXF / *.PLT / *.AI / *.Gerber / *.DWG | |||||
| Transmit system | Dual Rack & Pinion type | |||||
| Control System | FSCUT / Au3Tech / Raytools / Weihong | |||||
| Cutting Head | Raytools / FSCUT | |||||
| Reducer | Japan Shimpo / France MOTOVARIO | |||||
| Liner Guider System | Taiwan Hiwin /Italy PEK | |||||
| Gear Rack | Taiwan YYC | |||||
| Electrical components | Schneider made in France | |||||
| Water Chiller | Guangzhou S&W / Wuhan Hanli | |||||
| Optional | Rotary; Exchanging Table ; Protective Cover | |||||
